2773021447

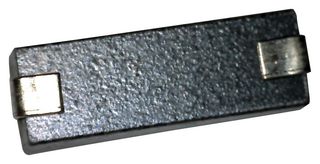

Perla de Ferrita, 78 ohm, 5 A, 0.0012 ohm
11,200 Puede reservar stock ahora
| Cantidad | Precio en USD |
|---|---|
| 1+ | $0.357 |
| 25+ | $0.238 |
| 50+ | $0.209 |
| 100+ | $0.188 |
| 250+ | $0.165 |
| 500+ | $0.150 |
| 1000+ | $0.137 |
Información del producto
Resumen del producto
The 2773021447 is a SM Bead with 73-grade material, differential-mode. The copper conductors have a lead-free tin coating. Rugged construction lowers the DC resistance and increases current carrying capacity compared to plated beads. Wires are oxygen-free high conductivity copper with 100% matte tin plating over a nickel undercoating. SM bead meets the solderability specifications when tested in accordance with MIL-STD-202, method 208. After dipping the mounting site of the bead, the solder surface shall be at least 95% covered with a smooth solder coating. The edges of the copper strip are not specified as solderable surfaces.
- Supports lower frequencies (<lt/>50MHz)
- -55 to 125°C Operating temperature
Especificaciones técnicas
-
5
0.0012
9.6
2.85
-55
-
78
-
-
3.05
SMD
125
No SVHC (21-Jan-2025)
