39-00-0184

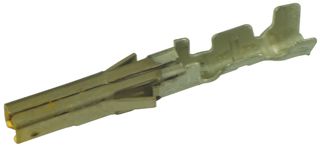

Contacto, Mini-Fit® Jr.™, Serie 5556, Hembra, Crimpado, 22 AWG, Contactos con Recubrimiento de Oro
¿Necesita más?
| Cantidad | Precio en USD |
|---|---|
| 1+ | $0.729 |
| 10+ | $0.589 |
| 25+ | $0.545 |
| 50+ | $0.530 |
| 100+ | $0.514 |
| 250+ | $0.488 |
| 500+ | $0.468 |
| 1000+ | $0.430 |
Información del producto
Resumen del producto
The 39-00-0184 is a Crimp Terminal made of phosphor bronze with gold plated finish. The 5556 series female terminal/socket contact accepts 22 to 28AWG wire. It mates with 5558 Mini-Fit® crimp male terminals Mini-Fit Jr.™ vertical header 5566, 5569 dual row header and it can be suitable for use with 5557 Mini-Fit Jr.™ receptacle housing, 30067 Mini-Fit® TPA, 42474 Mini-Fit® BMI panel mount, 44516 Mini-Fit® BMI slide and lock panel mount. The Mini-Fit® family is designed for higher-current/higher-density applications which require design flexibility for wire-to-wire, wire-to-board and board-to-board configurations.
- 30 Durability (maximum mating cycles)
- 9A Rated current
- 600V Maximum rated voltage
Especificaciones técnicas
Serie 5556
Crimpado
Contactos con Recubrimiento de Oro
28
No SVHC (21-Jan-2025)
Hembra
22
Conectores Molex Serie Mini-Fit Jr. 5557, Mini-Fit TPA 30067 & Mini-Fit BMI 42474, 44516
Bronce Fosforado
