SCTEST3

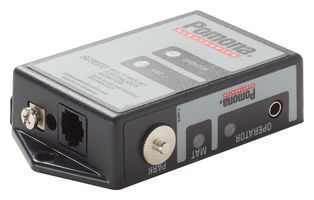

SCTEST3 is a multi-mountable continuous monitor with North American plug for single workstations. Continuous visual and audible alarms by illuminating green to indicate proper grounding, illuminates red and sounds audible alarm when intermittent or failed connection occurs. 1.2V operator test voltage reduces the risk of electrical overstress (EOS) for the handling of sensitive components. Wave distortion technology provides stable continuous monitoring (versus pulse or intermittent) of the wrist strap’s path-to-ground and the presence of its 1Mohm safety resistor. Dimension is 3.87” L x 2.09” W x 0.90” H (98mm x 53mm x 23mm) and operating temperature is 50°F to 95°F (10°C to 35°C).

• Continuously monitors the path-to-ground integrity of one operator and one ESD work surface
• Mounting tabs make it suitable to install on workbench or equipment settings
• Alarms when the operator unintentionally disconnects from the monitor
• Provides stable continuous monitoring through wave distortion technology
• Single workstation continuous monitor for ESD worksurface
• Provides warning on disconnected or intermittent connections to continuous monitor
• Monitors for a worksurface path-to-ground of less than 10Mohm
• National institute of standards and technology calibrated with certificate included
• Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
• Disconnect (and park) a wrist strap when leaving the workstation without creating a false alarm

Contenido

1 multi-mount monitor, 1 mat monitor cord (white), 1 countersunk washer, 1 flat head screw (6-23 x 1/4"), 2 pan-head screws (#6 x 3/8”), 1 dual lock fastener set (2” length), 1 power adapter (24VDC, North America plug), 1 certificate of calibration.
