1410140-1.
Conector, Serie MULTIGIG RT, 144 Contactos, 1.8 mm, Receptáculo eléctrico, A presión, 9 Líneas
¿Necesita más?
| Cantidad | Precio en USD |
|---|---|
| 1+ | $25.540 |
| 10+ | $25.380 |
| 30+ | $25.200 |
| 50+ | $25.060 |
| 100+ | $24.900 |
Información del producto
Resumen del producto

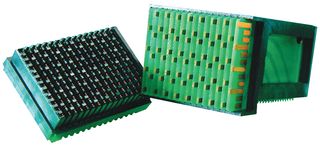

The 1410140-1 is a 144-position 9-row 16-column vertical Board-to-Board High Speed Connector with 1.27µm gold-plated phosphor bronze contacts and black LCP housing. This MULTIGIG RT product is a backplane interconnect family that offers levels of flexibility and customization. This printed circuit based, pinless, interconnect family is comprised of modular components, which can be used in a variety of combinations. Customizable impedance is matched with printed circuit wafer interface. Optimized footprints for signal integrity and ease of board design. It utilizes a 0.56mm diameter via for backplane connector for lower cost board fabrication.
- Switch slot board
- Centre guide location
- Polarization mating alignment type
- 10Gbps Performance
- Superior crosstalk performance
Aplicaciones
Defensa, Militar y Aeroespacial, Comunicaciones y Red
Especificaciones técnicas
Serie MULTIGIG RT
Backplane
1.8mm
A presión
1.8mm
Contactos con Recubrimiento de Oro
144Contactos
Plano Posterior
Receptáculo eléctrico
9Líneas
Bronce Fosforado
Lead
