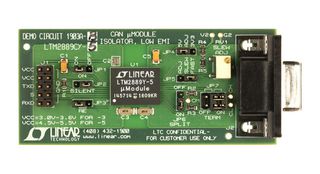

DC1903A-B
DEMO BOARD, ISOLATED CAN TX, DC/DC CONV
Image is for illustrative purposes only. Please refer to product description.
5 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $93.640 |
Price for:Each
Minimum: 1
Multiple: 1
$93.64
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerANALOG DEVICES
Manufacturer Part NoDC1903A-B
Newark Part No.21AM2867
Technical Datasheet
Kit Application TypeIsolated DC/DC Converter
Application Sub TypeIsolated CAN Transceiver
Silicon ManufacturerAnalog Devices
Silicon Core NumberLTM2889-5
Product Range-
Kit ContentsDemo Board LTM2889-5
SVHCNo SVHC (25-Jun-2025)
Product Overview
DC1903A-B demonstration circuit is an isolated CAN μModule® transceiver plus power featuring the LTM2889-5. The demo circuit features an EMI optimized circuit configuration and printed circuit board layout. All components are integrated into the μModule isolator. The demo circuit operates from a single supply on VCC. The part generates an isolated output voltage on VCC2 and communicates all necessary signaling across the isolation barrier through LTC’s isolator µModule technology.
- 4.5V to 5.5V input supply voltage range
- 5V regulated output voltage at ILOAD = 150mA
- 4Mbps maximum data rate
- 560V DC maximum working insulation voltage at GND to GND2
- 30kV/µs minimum common mode transient immunity
Technical Specifications
Kit Application Type
Isolated DC/DC Converter
Silicon Manufacturer
Analog Devices
Product Range
-
SVHC
No SVHC (25-Jun-2025)
Application Sub Type
Isolated CAN Transceiver
Silicon Core Number
LTM2889-5
Kit Contents
Demo Board LTM2889-5
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (25-Jun-2025)
