EVAL-AD4112SDZ

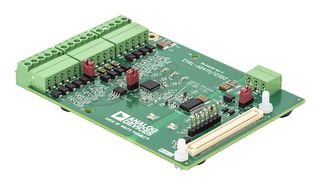

EVAL-AD4112SDZ is an evaluation board to evaluate AD4112 with ±10V and 0mA to 20mA inputs and integrated analog front end for industrial automation systems. The AD4112 is a 24bit, 31.25KSPS analog-to-digital converter (ADC) with a ±10 V input voltage range (eight single-ended channels or four fully differential channels) and four current channels operating from 0mA to 20mA. All channels have on-board overvoltage and overcurrent protection. It includes voltage references and power and data insulation and can be connected to the Analog Devices, Inc., SDP-B system demonstration platform (EVALSDP-CB1Z). The SDP-B board provides connection to a PC via a universal serial bus (USB) port and can provide power for the EVAL-AD4112SDZ board from the PC USB port.

• Fully featured evaluation board for the AD4112
• PC control in conjunction with SDP-B system demonstration platform (EVAL-SDP-CB1Z)
• PC software for control and data analysis (time domain)

Contents

EVAL-AD4112SDZ evaluation board, AD411X Eval+ evaluation software.

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
