GP5000S35-0.020-02-0404
Thermally Conductive Material, Gap Pad 5000S35 .020" 4" x 4" Sheet, 5 W/m.K, 0.02 "

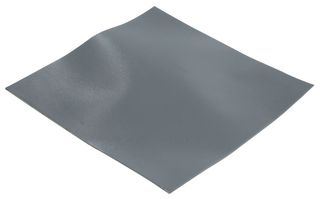

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBERGQUIST
Manufacturer Part NoGP5000S35-0.020-02-0404
Newark Part No.47T2108
Technical Datasheet
452 In Stock
Need more?
151 Delivery in 1-3 Business Days(US stock)
301 Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $22.200 |
| 10+ | $22.200 |
| 25+ | $22.200 |
| 50+ | $22.190 |
| 100+ | $22.190 |
Price for:Each
Minimum: 1
Multiple: 1
$22.20
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBERGQUIST
Manufacturer Part NoGP5000S35-0.020-02-0404
Newark Part No.47T2108
Technical Datasheet
Thermal Conductivity5W/m.K
Insulator Body MaterialFibreglass
Conductive MaterialSilicone, Fibreglass
Breakdown Voltage Vbr5kV
Thickness0.02"
Thermal Impedance-
Dielectric Strength-
External Length101.6mm
External Width101.6mm
Product Range-
SVHCNo SVHC (07-Nov-2024)
Product Overview
The GP5000S35-0.020-02-0404 is a fiberglass Gap Pad with high thermal conductivity plus S-class softness and conformability. Natural inherent tack reduces interfacial thermal resistance. Conforms to demanding contours and maintains structural integrity with little or no stress applied to fragile component leads. Fiberglas reinforced for puncture, shear and tear resistance. Excellent thermal performance at low pressures.
Applications
HVAC
Technical Specifications
Thermal Conductivity
5W/m.K
Conductive Material
Silicone, Fibreglass
Thickness
0.02"
Dielectric Strength
-
External Width
101.6mm
SVHC
No SVHC (07-Nov-2024)
Insulator Body Material
Fibreglass
Breakdown Voltage Vbr
5kV
Thermal Impedance
-
External Length
101.6mm
Product Range
-
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (07-Nov-2024)
