SIL PAD TSP K1300
Thermal Pad, TO220

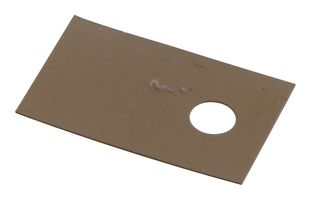

Image is for illustrative purposes only. Please refer to product description.
475 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.150 |
| 10+ | $1.100 |
| 25+ | $1.050 |
| 50+ | $0.998 |
| 100+ | $0.938 |
| 250+ | $0.909 |
| 500+ | $0.781 |
| 1000+ | $0.677 |
Price for:Each
Minimum: 1
Multiple: 1
$1.15
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBERGQUIST
Manufacturer Part NoSIL PAD TSP K1300
Newark Part No.70C9349
Technical Datasheet
Thermal Conductivity1.3W/m.K
Insulator Body MaterialPI (Polyimide) Film
Conductive MaterialSilicone
Thickness0.15mm
Breakdown Voltage Vbr6kV
Thermal Impedance-
Dielectric Strength-
External Length-
External Width-
Product Range-
SVHCNo SVHC (07-Nov-2024)
Product Overview
Sil-Pad K-10 is a high performance insulator. It combines special film with a filled silicone rubber. The result is a product with good cut-through properties and excellent thermal performance. Sil-Pad K-10 is designed to replace ceramic insulators such as Beryllium Oxide, Boron Nitride, and Alumina. These insulators are expensive and they break easily. Sil-Pad K-10 eliminates breakage and costs much less than ceramics.
- Thermal impedance 0.41°C-in2/W (@50 psi)
- 0.2℃/W thermal resistance
- Tough dielectric barrier against cut-through
- Electrically isolating to 6kV (min)
- High performance film
- Designed to replace ceramic insulators
Technical Specifications
Thermal Conductivity
1.3W/m.K
Conductive Material
Silicone
Breakdown Voltage Vbr
6kV
Dielectric Strength
-
External Width
-
SVHC
No SVHC (07-Nov-2024)
Insulator Body Material
PI (Polyimide) Film
Thickness
0.15mm
Thermal Impedance
-
External Length
-
Product Range
-
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
