VNCLO-START1

The VNCLO-START1 is a development kit platform for the Vinculum-II (VNC2) USB host/device controller. This development kit combines the Vinculo motherboard with the VNC2 debugger/programmer module. The Vinculum-II supports dual USB host/device interfaces, FIFO, SPI, I2C, PWM and UART. On board is a 10bit, 8 channel ADC and 38 GPIO which are available for quick prototyping. This development platform features a free software development suite including a full featured C compiler, real time operating system and USB host/device software stack for HID, CDC, HUB, printer and BOMS (FAT file system). The new starter kit (VNCLO-START1) provides a cost effective rapid development solution at a cost effective price.

• Vinco mother board is based on VNC2-64Q microcontroller
• Superset of the Arduino Duemilanove/Uno development boards
• FTDI integrated development environment including code editor, compiler, assembler and debugger
• Precompiled drivers for a variety of interfaces eg. USB, UART, SPI
• Compatible with existing Arduino shields
• VNC2 DEBUG MODULE is a programmer and debugger for VNC2 IC designs
• UHCI/OHCI /EHCI host controller compatible
• USB 2.0 full speed compatible
• On board FTDI FT232R which provides conversion from USB to serial interface for VNC2 debug port
• One USB mini B type socket to connect with a PC

Contents

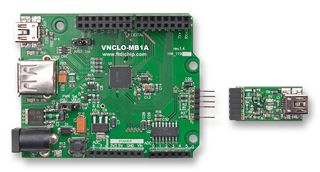

Vinco motherboard, VNC2 DEBUG MODULE.
