TP12X19-C-24D
Linear Solenoid, Push, Continuous, 24 VDC, 39.756 N, 68 ohm, 8.9 W

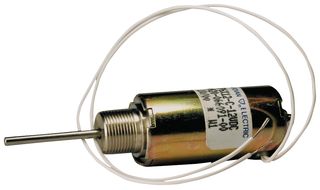

Image is for illustrative purposes only. Please refer to product description.
ManufacturerGUARDIAN ELECTRIC
Manufacturer Part NoTP12X19-C-24D
Newark Part No.20M0271
Product RangeTP12X19 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
| Quantity | Price |
|---|---|
| 10+ | $74.480 |
| 25+ | $72.570 |
| 50+ | $68.750 |
| 100+ | $61.730 |
| 250+ | $55.560 |
Price for:Each
Minimum: 16
Multiple: 1
$1,191.68
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerGUARDIAN ELECTRIC
Manufacturer Part NoTP12X19-C-24D
Newark Part No.20M0271
Product RangeTP12X19 Series
Technical Datasheet
Coil Voltage24VDC
Coil Resistance68ohm
Coil Power Continuous8.9W
Holding Force39.756N
Holding Force - Metric39.756N
Solenoid OperationPush
Solenoid Duty CycleContinuous
External Diameter38.1mm
External Length61.7mm
Product RangeTP12X19 Series
SVHCTo Be Advised
Product Overview
The TP12X19-C-24D is a 24VDC/8.9W cylindrical DC Tubular Solenoid with push operation, continuous duty cycle and 68Ω coil resistance. The plunger pushes out of the body of the solenoid from the threaded end.
- Mount directly to threaded bushing
Applications
Industrial
Contents
Tubular solenoid, L-shaped mounting brackets, Hex nuts and lock washers.
Notes
Exceeding the duty cycle rating may result in overheating and solenoid failure.
