FS75R12KE3BPSA1
IGBT Module, Six Pack [Full Bridge], 105 A, 1.7 V, 350 W, 150 °C, Module

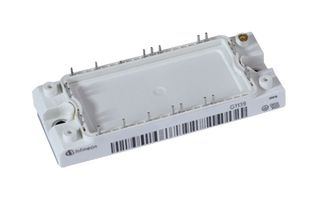

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFS75R12KE3BPSA1
Newark Part No.58AJ2190
Product RangeEconoPACK 2
Your Part Number
108 In Stock
Need more?
2 Delivery in 1-3 Business Days(US stock)
106 Delivery in 2-4 Business Days(UK stock)
Order before 6pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $85.740 |
| 5+ | $79.650 |
| 10+ | $73.580 |
| 30+ | $67.490 |
Price for:Each
Minimum: 1
Multiple: 1
$85.74
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS75R12KE3BPSA1
Newark Part No.58AJ2190
Product RangeEconoPACK 2
Technical Datasheet
IGBT ConfigurationSix Pack [Full Bridge]
Continuous Collector Current105A
DC Collector Current105A
Collector Emitter Saturation Voltage1.7V
Collector Emitter Saturation Voltage Vce(on)1.7V
Power Dissipation350W
Power Dissipation Pd350W
Junction Temperature, Tj Max150°C
Operating Temperature Max150°C
Transistor Case StyleModule
IGBT TerminationSolder
Collector Emitter Voltage V(br)ceo1.2kV
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 3 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK 2
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
IGBT Configuration
Six Pack [Full Bridge]
DC Collector Current
105A
Collector Emitter Saturation Voltage Vce(on)
1.7V
Power Dissipation Pd
350W
Operating Temperature Max
150°C
IGBT Termination
Solder
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
No SVHC (25-Jun-2025)
Continuous Collector Current
105A
Collector Emitter Saturation Voltage
1.7V
Power Dissipation
350W
Junction Temperature, Tj Max
150°C
Transistor Case Style
Module
Collector Emitter Voltage V(br)ceo
1.2kV
IGBT Technology
IGBT 3 [Trench/Field Stop]
Product Range
EconoPACK 2
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
