46557-4145
Mezzanine Connector, High Density, Receptacle, 1.27 mm, 4 Rows, 160 Contacts, Surface Mount

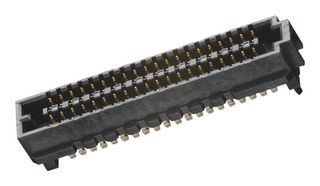

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No46557-4145
Newark Part No.62AC1161
Product RangeSEARAY 46557 Series
Also Known AsGTIN UPC EAN: 883906136864
Technical Datasheet
5 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $4.730 |
| 10+ | $4.730 |
| 25+ | $4.730 |
| 50+ | $4.730 |
| 100+ | $4.730 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$4.73
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No46557-4145
Newark Part No.62AC1161
Product RangeSEARAY 46557 Series
Also Known AsGTIN UPC EAN: 883906136864
Technical Datasheet
Product RangeSEARAY 46557 Series
Mezzanine Connector TypeReceptacle
Pitch Spacing1.27mm
No. of Rows4Rows
No. of Contacts160Contacts
Connector MountingSurface Mount
Contact PlatingGold Plated Contacts
Contact MaterialCopper Alloy
SVHCNo SVHC (25-Jun-2025)
Alternatives for 46557-4145
1 Product Found
Product Overview
- Data rate up to 12.5Gbps
- Multiple stack heights and circuit options
- SEARAY footprint (1.27 by 1.27mm)
- Molex’s unique patented solder-charge technology
- Robust guidance and polarization design
- Narrow body design
- Solder precisely stamped onto terminals
- Guide posts
Applications
Communications & Networking, Data / Computing, Medical
Technical Specifications
Product Range
SEARAY 46557 Series
Gender
Receptacle
No. of Rows
4Rows
Connector Mounting
Surface Mount
Contact Material
Copper Alloy
Mezzanine Connector Type
Receptacle
Pitch Spacing
1.27mm
No. of Contacts
160Contacts
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (25-Jun-2025)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
