779038-02

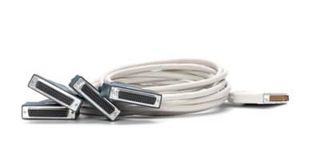

779038-02 is a LFH200 200-pin male OR 4X50-pin to 200-pin, 60VDC LFH switch cable. There are three different options for this cable. All three options have a 200-pin, male LFH front end connection. Each option has a different back end connection. The first option has a 200-pin, male bare wire back end connection. This option is specifically suited for the PXI-2569/70/71 and SCXI-1169. The second option has 4 50-pin, female D-sub back end connections. This option is specifically suited for the PXI-2569/70/71 and SCXI-1169. The second option uses the same twisted-pair configuration (CH-com twisted) but offers 50-pin D-sub connectivity. The third option also has 4 50-pin, female D-sub back end connections, but it twists the ch+ and ch- terminals (CH-CH twisted) when used in a 2-wire configuration. This option is specifically suited for the PXI-2575 and SCXI-1175.

• For use with NI PXI-2569, PXI-2570, PXI-2571, PXI-2575, SCXI-1169 and SCXI-1175 switch modules
