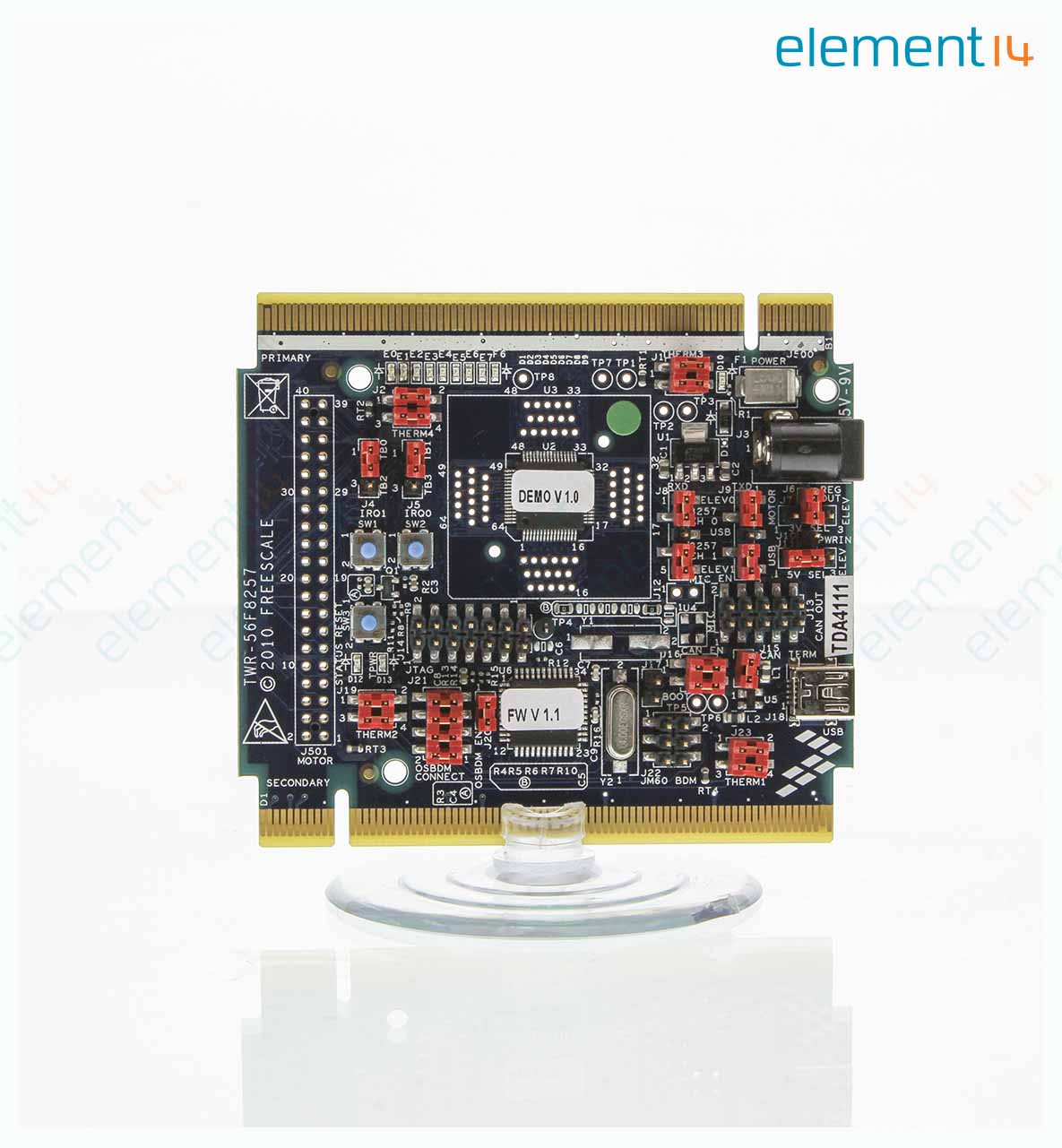

TWR-56F8257
Tower System Kit, 3 Phase Motor, Motor Control Applications, MC56F
- Manufacturer:
- NXP NXP
- Manufacturer Part No:
- TWR-56F8257
- Newark Part No.:
- 87R1345
- Technical Datasheet:
- TWR-56F8257 Datasheet
Product Overview
The TWR-56F8257 is a cost effective evaluation, demonstration and development board for the MC56F8257 DSCs. Ideally suited for motor control applications, it can be combined and used with several peripheral modules in the Tower System, including the TWR-MC-LV3PH motor control module or be operated as a standalone tool. It can also be used as the main control board with an APMOTOR56F8000E motor control board.
- MC56F8257 digital signal controller (DSC) in an 64 LQFP package
- Nine LEDs controlled by the MC56F8257 DSC
- Motor control board connector for the APMOTOR56F8000E motor control board
- Four thermistors for single ended or differential analog inputs to the MC56F8257 DSC
- CAN transceiver, header, and termination
- JTAG header for the MC56F8257 DSC with header to disconnect from OSBDM
- MC9S08JM60 MCU with a 4MHz crystal provide
- USB to SCI bridge
- Boot loader enable header
Applications
Motor Drive & Control
Contents
TWR-56F8257 board with a MC56F8257 16-bit MCU, Necessary cables, DVD with lab tutorials, software, training and collateral, Quick Start Guide document.
