1945096
Terminal Block, Header, 3.5 mm, 2 Positions, 8 A, 250 V, Through Hole Vertical

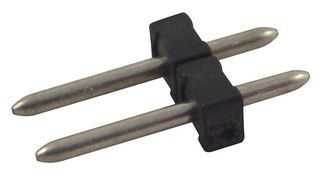

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPHOENIX CONTACT
Manufacturer Part No1945096
Newark Part No.69R9968
Product RangeCOMBICON
Also Known As1945096, GTIN UPC EAN: 4017918883263
Technical Datasheet
149 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 10+ | $0.261 |
| 50+ | $0.248 |
| 100+ | $0.233 |
| 250+ | $0.215 |
Price for:Each
Minimum: 10
Multiple: 10
$2.61
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPHOENIX CONTACT
Manufacturer Part No1945096
Newark Part No.69R9968
Product RangeCOMBICON
Also Known As1945096, GTIN UPC EAN: 4017918883263
Technical Datasheet
GenderHeader
Pitch Spacing3.5mm
No. of Positions2Positions
Rated Current8A
Rated Voltage250V
Block OrientationThrough Hole Vertical
Product RangeCOMBICON
SVHCNo SVHC (21-Jan-2025)
Product Overview
The PST 1.0/2-3.5 is a 2-position 1-row PCB Header with tin-plated copper contacts and a PA insulator. The maximum current depends on the plug used. The lower of the two current values apply for plug and pin strip. The pin strip is made of highly temperature resistant plastic and is thus suitable for wave and reflow soldering processes.
- Through-hole reflow mounting
- Optimum pin geometry for all COMBICON pin strip connectors
- 8A Nominal current
- 250V Rated voltage
Applications
Industrial
Technical Specifications
Gender
Header
No. of Positions
2Positions
Rated Voltage
250V
Product Range
COMBICON
Pitch Spacing
3.5mm
Rated Current
8A
Block Orientation
Through Hole Vertical
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
