                                                                                                  NGU411

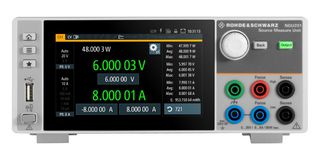

                                                                                                  Source Meter / Unit, 4-Quadrant, 1 Channels, NGU Series

                                                                                                  ROHDE & SCHWARZ NGU411
                                                                                                  ROHDE & SCHWARZ NGU411
                                                                                                  ROHDE & SCHWARZ NGU411
                                                                                                  ROHDE & SCHWARZ NGU411
                                                                                                  ROHDE & SCHWARZ NGU411
                                                                                                  Image is for illustrative purposes only. Please refer to product description.
                                                                                                  ManufacturerROHDE & SCHWARZ
                                                                                                  Manufacturer Part NoNGU411
                                                                                                  Newark Part No.70AK7905
                                                                                                  Product RangeNGU Series
                                                                                                  Technical Datasheet

                                                                                                  Data Sheet

                                                                                                  See all Technical Docs
                                                                                                  1 In Stock

                                                                                                  Need more?

                                                                                                  Same day shipping
                                                                                                  Order before 9pm EST standard shipping
                                                                                                  QuantityPrice
                                                                                                  1+$5,888.300
                                                                                                  Price for:Each
                                                                                                  Minimum: 1
                                                                                                  Multiple: 1
                                                                                                  $5,888.30
                                                                                                  Enter Your Part No/Line Note
                                                                                                  Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                                                                                                  This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                                                                                                  Product Information

                                                                                                  ManufacturerROHDE & SCHWARZ
                                                                                                  Manufacturer Part NoNGU411
                                                                                                  Newark Part No.70AK7905
                                                                                                  Product RangeNGU Series
                                                                                                  Technical Datasheet

                                                                                                  Data Sheet

                                                                                                  No. of Channels1Channels
                                                                                                  Product RangeNGU Series
                                                                                                  Source Meter FunctionCurrent/Voltage Measure, Current/Voltage Source
                                                                                                  Output Power20W
                                                                                                  Source Voltage Range-
                                                                                                  Source Current Range-
                                                                                                  Resistance Measurement Range-
                                                                                                  Manufacturer Warranty3 Years
                                                                                                  SVHCTo Be Advised

                                                                                                  Product Overview

                                                                                                  NGU411 is a single channel four-quadrant source measure unit. It provides up to 60W of output power and sink power, respectively. The channels are floating, galvanically isolated and protected against overload and short circuits. With five measurement ranges for current and a resolution of up to 6½ digits when measuring voltage, current and power, R&S®NGU source measure units are perfect for characterizing devices that work from extremely low power consumption to high currents in the ampere range. Using ammeters with feedback-amplifier technology increases accuracy and widens the sensitivity down to nA range. With an acquisition rate of up to 500000 samples/sec, even extremely fast variations in voltage/current can be captured. The instruments provide fast load recovery time of <lt/> 30µs combined with minimum overshoot even during a demanding load change. The linear design of the output stages allows R&S®NGU SMU to operate as a source and sink with minimum residual ripple and noise.

                                                                                                  • Maximum output power is 20W
                                                                                                  • Output voltage per channel range from -20V to +20V
                                                                                                  • Output current per channel ≤ 10V: ±2A, <gt/> 10V: ±1A
                                                                                                  • TFT 5" 800 × 480 pixel WVGA touch display
                                                                                                  • High speed data acquisition (FastLog function)
                                                                                                  • Overvoltage, overcurrent, overpower and overtemperature protection
                                                                                                  • Operates in voltage priority and current priority mode, high-capacitance mode
                                                                                                  • Mains nominal voltage 100V/115V/230V (±10%)
                                                                                                  • operating temperature range +5°C to +40°C
                                                                                                  • Dimension is W × H × D 8.74" × 3.81" × 17.16"

                                                                                                  Technical Specifications

                                                                                                  No. of Channels

                                                                                                  1Channels

                                                                                                  Source Meter Function

                                                                                                  Current/Voltage Measure, Current/Voltage Source

                                                                                                  Source Voltage Range

                                                                                                  -

                                                                                                  Resistance Measurement Range

                                                                                                  -

                                                                                                  SVHC

                                                                                                  To Be Advised

                                                                                                  Product Range

                                                                                                  NGU Series

                                                                                                  Output Power

                                                                                                  20W

                                                                                                  Source Current Range

                                                                                                  -

                                                                                                  Manufacturer Warranty

                                                                                                  3 Years

                                                                                                  Technical Docs (2)

                                                                                                  Technical Data Sheet EN

                                                                                                  Programming Manual EN

                                                                                                  Legislation and Environmental

                                                                                                  US ECCN:3A992A
                                                                                                  EU ECCN:Unknown
                                                                                                  RoHS Compliant:Yes

                                                                                                  RoHS

                                                                                                  RoHS Phthalates Compliant:Yes

                                                                                                  RoHS

                                                                                                  SVHC:To Be Advised
                                                                                                  Download Product Compliance Certificate

                                                                                                  Product Compliance Certificate

                                                                                                  Customer Service
                                                                                                  I Need Help
                                                                                                  Sales 01.800.463.9275
                                                                                                  Technical 01.800.463.9275
                                                                                                  Submit Feedback
