4303F5
LED, Green, Through Hole, T-1 (3mm), 10 mA, 2.2 V, 562 nm
.jpg){kind=logo}

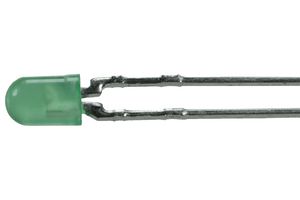

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part No4303F5
Newark Part No.93K6987
Technical Datasheet
1,331 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.711 |
| 10+ | $0.531 |
| 100+ | $0.378 |
| 500+ | $0.309 |
| 1000+ | $0.266 |
| 3000+ | $0.242 |
| 10000+ | $0.235 |
Price for:Each
Minimum: 1
Multiple: 1
$0.71
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part No4303F5
Newark Part No.93K6987
Technical Datasheet
LED ColorGreen
LED MountingThrough Hole
LED Case SizeT-1 (3mm)
Bulb SizeT-1 (3mm)
Forward Current If10mA
Forward Voltage2.2V
Wavelength Typ562nm
Luminous Intensity16mcd
Viewing Angle90°
Lens ShapeRound
Product Range-
Automotive Qualification Standard-
MSL-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 4303F5 is a green through-hole mount Solid State LED Lamp with high intensity light output. The 4303F series Super Brite T-1 (3mm) LED lamp made of shock-proof, solid lens and epoxy construction. Leads are silver plated and eliminating soldering problems. The LED lamp is suitable for use with the advertising, exterior signs and architectural lighting and indoor and outdoor illumination and signs, signals and displays, high-tech applications.
- Diffused lens
- Low power dissipation
Applications
LED Lighting, Avionics, Automotive, Imaging, Video & Vision, Consumer Electronics
Technical Specifications
LED Color
Green
LED Case Size
T-1 (3mm)
Forward Current If
10mA
Wavelength Typ
562nm
Viewing Angle
90°
Product Range
-
MSL
-
LED Mounting
Through Hole
Bulb Size
T-1 (3mm)
Forward Voltage
2.2V
Luminous Intensity
16mcd
Lens Shape
Round
Automotive Qualification Standard
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Alternatives for 4303F5
2 Products Found
Associated Products
7 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
