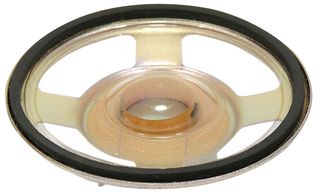

KC57C-8OHM
LOUDSPEAKER, WATERPROOF, 8 OHM, 2.2"
Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISATON
Manufacturer Part NoKC57C-8OHMCopy
Manufacturer Standard Lead Time6 weeks
Newark Part No.83AK6939
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
| Quantity | Price |
|---|---|
| 1+ | $13.110 |
| 10+ | $12.570 |
| 25+ | $11.020 |
| 50+ | $10.270 |
| 100+ | $9.240 |
| 250+ | $8.840 |
| 500+ | $8.060 |
Price for:Each
Minimum: 1
Multiple: 1
$13.11
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerVISATON
Manufacturer Part NoKC57C-8OHMCopy
Manufacturer Standard Lead Time6 weeks
Newark Part No.83AK6939
Driver TypeMiniature
Impedance8ohm
External Diameter - Metric57mm
External Width - Metric-mm
Power Rating Nom2W
Resonant Frequency550Hz
Sound Pressure Level (SPL)87dBA
Speaker ShapeRound
External Diameter - Imperial2.244"
Product Dimensions56.9mm x 16.1mm
External Width - Imperial-"
Frequency Response Min350Hz
Frequency Range350Hz to 6.8kHz
Temperature Grade-
Frequency Response Max6.8kHz
IP Rating-
IP Rating-
Product Range-
Speaker MountingBare Mount
Speaker MountingBare Mount
Power Rating Max3W
External Length - Metric-mm
External Depth - Metric17mm
External Length - Imperial-"
External Depth - Imperial0.669"
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Driver Type
Miniature
External Diameter - Metric
57mm
Power Rating Nom
2W
Sound Pressure Level (SPL)
87dBA
External Diameter - Imperial
2.244"
External Width - Imperial
-"
Frequency Range
350Hz to 6.8kHz
Frequency Response Max
6.8kHz
IP Rating
-
Speaker Mounting
Bare Mount
Power Rating Max
3W
External Depth - Metric
17mm
External Depth - Imperial
0.669"
Impedance
8ohm
External Width - Metric
-mm
Resonant Frequency
550Hz
Speaker Shape
Round
Product Dimensions
56.9mm x 16.1mm
Frequency Response Min
350Hz
Temperature Grade
-
IP Rating
-
Product Range
-
Speaker Mounting
Bare Mount
External Length - Metric
-mm
External Length - Imperial
-"
SVHC
No SVHC (25-Jun-2025)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
