10065127-001LF

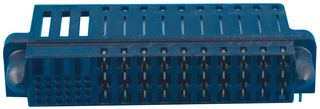

10065127-001LF is a 10DC+ 24S vertical receptacle. This HCI® connector system anticipates the continued trend toward increased system power demands that is driving the need for increased power density. The HCI® connector system is designed to address requirements that extend beyond the capability of FCI’s proven PwrBlade® connector system, the industry standard for DC power supply interfaces and power distribution. HCI® connector employ stamped and formed power contacts, initially pioneered by FCI with its PwrBlade® system, as an innovative and cost effective alternative to expensive screw machined contacts for high-current applications. Applications include AC/DC pluggable power supplies in data, telecom and datacom/networking, industrial PCs, industrial controls and instrumentation, medical.

• Up to 144A/power contact without exceeding a 30°C temperature rise in still air
• For high-wattage/high current density needs in power supplies and power distribution applications
• Provides power contacts for power distribution and signal contacts for power control
• Highly vented housing design maximizes airflow effects around and through the connector system
• Rugged, molded-in guides enable blind mating
• Up to 3 levels of sequential contact including a short detect pin for hot swap applications
• Board retention devices are provided to secure connectors during wave solder process
• Black high-temperature thermoplastic (UL94V-0) housing
• High-conductivity copper alloy power, copper alloy signal contact base
• UL/CSA and TUV approved
