AA240

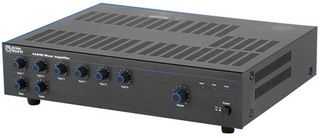

6Ch Mixer 240W RMS 8?/70V Professional PA Amplifier
La imagen solo tiene fines ilustrativos. Consulte la descripción del producto.
Disponible para realizar pedido
Plazo de entrega estándar del fabricante: 3 semana(s)
Información del producto
FabricanteATLAS SOUND
No. Parte FabricanteAA240
No. Parte Newark40P3887
Hoja de datos técnicos
Rango de Producto-
Tipo de ConectorUS
Sustancia Extremadamente Preocupante (SVHC)To Be Advised
Resumen del producto
Strategy Series 240W Mixer/Amplifier This AA240 amplifier was engineered with unique features to assist the contractor in today's commercial business audio environment. Six-inputs feature extensive muting and output options along with a very unique bridge in/out feature to allow combining of multiple amplifiers. VCA input allows remote level adjustment of either the BGM input or the entire amplifier.
- Input #1
- Balanced screw terminals
- Selectable mic, line or telephone level
- Switchable phantom power Input #2~5
- Balanced screw terminals
- Selectable mic or line level
- Switchable phantom power Input #6
- L/R RCA female (summed mono) line level
- Front panel bass and treble controls
- VOX mute with adjustable sensitivity
- N/O contact mute
- 1W/8ohm and 600ohm MOH outputs with adjustable level
- Power, Peak and Signal LED indicators
- Optional available
- Atlas Model #AA240Specifications
- THD 0.5% at rated power
- Dimensions: 4.22" (H) x 16.54" (W) x 14.02" (D)
Especificaciones técnicas
Rango de Producto
-
Sustancia Extremadamente Preocupante (SVHC)
To Be Advised
Tipo de Conector
US
Documentos técnicos (2)
Legislación y medioambiente
US ECCN:Unknown
EU ECCN:Unknown
Conforme a RoHS:Sí
RoHS
Cumplimiento de ftalatos con respecto a la restricción de sustancias peligrosas (RoHS):Sí
RoHS
Valor de sustancia extremadamente preocupante:To Be Advised
Descargue el certificado de cumplimiento del producto
Certificado de conformidad del producto
