SBL4R01J
Current Sense Resistor, SBL Series, 0.01 ohm, SBL Series, 4 W, Wirewound, Axial Leaded, ± 5%

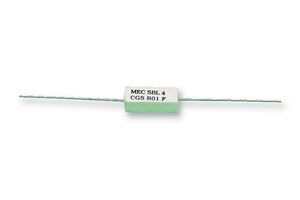

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCGS - TE CONNECTIVITY
Manufacturer Part NoSBL4R01J
Newark Part No.89K7723
Product RangeSBL Series
Technical Datasheet
292 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.020 |
| 10+ | $1.250 |
| 25+ | $1.130 |
| 50+ | $1.060 |
| 100+ | $0.998 |
| 500+ | $0.910 |
| 1000+ | $0.855 |
| 2500+ | $0.741 |
Price for:Each
Minimum: 1
Multiple: 1
$2.02
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCGS - TE CONNECTIVITY
Manufacturer Part NoSBL4R01J
Newark Part No.89K7723
Product RangeSBL Series
Technical Datasheet
Resistance0.01ohm
Product RangeSBL Series
Power Rating4W
Resistor TechnologyWirewound
Resistor Case / PackageAxial Leaded
Resistance Tolerance± 5%
Voltage Rating200mV
Temperature Coefficient± 100ppm/°C
Product Length18mm
Resistor TypeCurrent Sense
Product Width6.4mm
Product Diameter-
Product Height6.4mm
Operating Temperature Min-55°C
Operating Temperature Max250°C
Qualification-
SVHCNo SVHC (14-Jun-2023)
Product Overview
The SBL4R01J is a 0.01Ω 4W axial leaded through-hole mounting fixed Low Ohmic Resistor with foil wirewound element and tinned copper leads terminations. The SBL series is a non-inductive resistor with a low temperature coefficient in a fully insulated ceramic housing. The solid metal element has welded copper terminals and is encapsulated in a ceramic housing and filled with compressed silica sand.
- High reliability
- 2 Terminations
- -55 to 250°C Operating temperature range
Technical Specifications
Resistance
0.01ohm
Power Rating
4W
Resistor Case / Package
Axial Leaded
Voltage Rating
200mV
Product Length
18mm
Product Width
6.4mm
Product Height
6.4mm
Operating Temperature Max
250°C
SVHC
No SVHC (14-Jun-2023)
Product Range
SBL Series
Resistor Technology
Wirewound
Resistance Tolerance
± 5%
Temperature Coefficient
± 100ppm/°C
Resistor Type
Current Sense
Product Diameter
-
Operating Temperature Min
-55°C
Qualification
-
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (14-Jun-2023)
