OPT-PS-M2-3
OPTICAL LEVEL SWITCH, LIQUID, SPST-NC

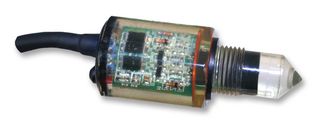

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCOMUS / ASSEMTECH
Manufacturer Part NoOPT-PS-M2-3
Newark Part No.46W5477
Product RangeOPT Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 15 week(s)
| Quantity | Price |
|---|---|
| 1+ | $93.170 |
| 10+ | $85.050 |
| 25+ | $83.880 |
| 50+ | $81.820 |
| 100+ | $76.480 |
| 250+ | $68.050 |
| 500+ | $59.980 |
Price for:Each
Minimum: 1
Multiple: 1
$93.17
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCOMUS / ASSEMTECH
Manufacturer Part NoOPT-PS-M2-3
Newark Part No.46W5477
Product RangeOPT Series
Technical Datasheet
Sensor Output TypeNPN
Level Switch TypeOptical Level Switch
Media TypeLiquid
Process Connection Type-
Operating Pressure Max-
Output Current100mA
Housing MaterialPolysulfone
Switch OutputSPST-NC
Electrical ConnectionCable
Supply Voltage Min10V
Supply Voltage Max28VDC
Operating Temperature Min-10°C
Operating Temperature Max125°C
Product RangeOPT Series
Technical Specifications
Sensor Output Type
NPN
Media Type
Liquid
Operating Pressure Max
-
Housing Material
Polysulfone
Electrical Connection
Cable
Supply Voltage Max
28VDC
Operating Temperature Max
125°C
SVHC
No SVHC (14-Jun-2023)
Level Switch Type
Optical Level Switch
Process Connection Type
-
Output Current
100mA
Switch Output
SPST-NC
Supply Voltage Min
10V
Operating Temperature Min
-10°C
Product Range
OPT Series
Technical Docs (2)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (14-Jun-2023)
