APHC-03103-S

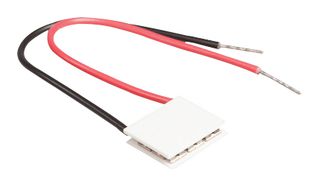

PELTIER MODULE, 6W, 16 X 16 X 3.9MM
Image is for illustrative purposes only. Please refer to product description.
ManufacturerEUROPEAN THERMODYNAMICS
Manufacturer Part NoAPHC-03103-S
Newark Part No.51Y4930
Product RangeAPHC
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
| Quantity | Price |
|---|---|
| 1+ | $61.110 |
| 5+ | $56.450 |
| 10+ | $55.110 |
| 25+ | $54.230 |
| 50+ | $52.130 |
| 100+ | $47.930 |
| 250+ | $44.040 |
Price for:Each
Minimum: 1
Multiple: 1
$61.11
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEUROPEAN THERMODYNAMICS
Manufacturer Part NoAPHC-03103-S
Newark Part No.51Y4930
Product RangeAPHC
Technical Datasheet
No. of Stages1 Stage
Cooling Power Pc6W
Current Max @ Diff Temperature Max2.5A
Voltage Max @ Diff Temperature Max3.6VDC
Length16mm
Width16mm
Depth3.9mm
Temperature Difference Max65°C
Product RangeAPHC
Internal Resistance1.2ohm
Lead Wires100mm, UL-Style 1569, Unstripped
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
No. of Stages
1 Stage
Current Max @ Diff Temperature Max
2.5A
Length
16mm
Depth
3.9mm
Product Range
APHC
Lead Wires
100mm, UL-Style 1569, Unstripped
Cooling Power Pc
6W
Voltage Max @ Diff Temperature Max
3.6VDC
Width
16mm
Temperature Difference Max
65°C
Internal Resistance
1.2ohm
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
