M80-4600842
Rectangular Connector, Dual in Line, Datamate J-Tek M80 Series, 8 Contacts, Receptacle, 2 mm, Crimp

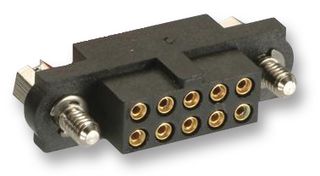

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARWIN
Manufacturer Part NoM80-4600842
Newark Part No.51R6877
Product RangeDatamate J-Tek M80 Series
Technical Datasheet
146 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $6.610 |
| 10+ | $6.610 |
| 25+ | $6.610 |
| 50+ | $6.610 |
| 100+ | $6.610 |
| 250+ | $6.610 |
Price for:Each
Minimum: 1
Multiple: 1
$6.61
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARWIN
Manufacturer Part NoM80-4600842
Newark Part No.51R6877
Product RangeDatamate J-Tek M80 Series
Technical Datasheet
Product RangeDatamate J-Tek M80 Series
No. of Contacts8Contacts
Pitch Spacing2mm
Contact Termination TypeCrimp
No. of Rows2 Row
No. of Rows2Rows
Connector MountingCable Mount
Contact PlatingGold Plated Contacts
Contact MaterialBeryllium Copper
SVHCLead
Product Overview
M80-4600842 is a 8 position, 2mm pitch, high-reliability Datamate J-Tek female DIL connector. Complete kit include housing with Hexagonal slotted jackscrews fitted, 8 x barrel crimp contacts loose - gold finish on contact area, Tin finish on termination.
- Large bore suitable for 22 AWG cable (Ø1.1mm max insulation)
- 3.3A max individual contact, 3A max simultaneous (25°C) current rating
- Straight connector orientation
- Black colour PPS housing material
- Beryllium copper contact clip, brass shell base material of contact
- UL94V-0 flammability rating
- Operating temperature range from -55°C to +125°C
- Polarised connector
- M2 thread size
Technical Specifications
Product Range
Datamate J-Tek M80 Series
Gender
Receptacle
Contact Termination Type
Crimp
No. of Rows
2Rows
Contact Plating
Gold Plated Contacts
SVHC
Lead
No. of Contacts
8Contacts
Pitch Spacing
2mm
No. of Rows
2 Row
Connector Mounting
Cable Mount
Contact Material
Beryllium Copper
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
