ZMD2500B
Rotary Encoder, Length Sensor, Mechanical, Incremental, 2500 PPR, 0 Detents, Without Push Switch

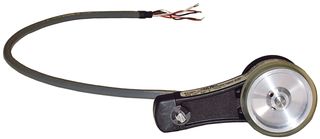

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRED LION
Manufacturer Part NoZMD2500B
Newark Part No.19P7186
Product RangeZMD Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 2 week(s)
| Quantity | Price |
|---|---|
| 1+ | $578.550 |
Price for:Each
Minimum: 1
Multiple: 1
$578.55
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRED LION
Manufacturer Part NoZMD2500B
Newark Part No.19P7186
Product RangeZMD Series
Technical Datasheet
Encoder TechnologyMechanical
Encoder TypeIncremental
Encoder Resolution2500PPR
No. of Detents0 Detents
Orientation-
Push SwitchWithout Push Switch
Encoder OutputNPN Open Collector, Quadrature
Encoder MountingBracket Mount
Product RangeZMD Series
Rotational Speed Max6000rpm
Rotational Life Cycles-
No. of Channels2Channels
Shaft TypeFlatted End
Shaft Length-
Shaft Diameter6.35mm
Supply Voltage Min4.75V
Supply Voltage Max28V
Operating Temperature Min-20°C
Operating Temperature Max85°C
IP RatingIP50
TerminationWire Leaded
SVHCNo SVHC (08-Jul-2021)
