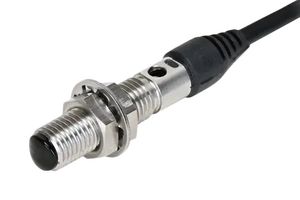

SA1N-DN1VF50-2M

SA1N-DN1VF50-2M is a SA1N space-saving, subminiature photoelectric sensor. It significantly contributes to equipment downsizing. As extra installation space for a separate amplifier is not required, the sensor can be mounted and used in applications where solutions were previously limited to fiber optic sensing heads. Typical applications include sensing (parts feeder, medical equipment, bottle cap conveyor lines), positioning/counting (counting components on conveyor lines, positioning PCB conveyor lines, detecting missing electronic components).

• Compact equipment, high accuracy and performance
• Can be installed in tight spaces where general-purpose sensors don’t fit
• Built-in amplifier reduces installation space (no extra space required for the amplifier)
• Sensitivity adjustment control, small sensor head can be mounted where space is limited
• Sensitivity adjustment control simplifies post-installation adjustments
• Fiber type, diffuse-reflective sensing method, NPN output
• 3 to 50mm sensing range, infrared LED light source (emitter)
• Rated operating voltage: 12 to 24V±10% DC, ripple (p-p): 10% maximum, 20mA maximum current draw
• Operating temperature range from -25 to +55°C (no freezing, no condensation)
• Dielectric strength: 500V AC, 1 minute, IP67 (IEC 60529) degree of protection

Notas

Cable bends easily and is simple to install. Can be mounted without concerns about bend limits and damage associated with fiber optic cables.
