E3630A.

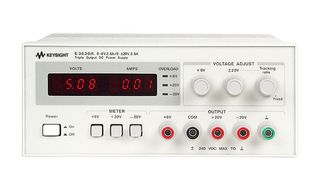

E3630A is a low-cost bench top power supply provides clean power with excellent regulation and a fast transient response. The 35-watt E3630A non-programmable triple-output power supply provides three DC outputs: 0 to 6V with a maximum current of 1 to 2.5A and 0 to 20V and 0 to -20V with a maximum current of 0.5A. An auto-tracking feature lets you use one voltage control to adjust the +20 V and -20V outputs simultaneously. The outputs track each other to within 1 percent, making it easy to adjust the power supply for circuits requiring balanced voltages.

• Linear power supply
• 10-turn voltage and current control
• Low noise and excellent regulation
• Isolation voltage of 240VDC
• Convection cooling
• 3 year product warranty
• Dimension is D 3.5” H x 8.4” W x 12.5” D

Contenido

E3630A triple-output power supply, Product reference CD, Power cord.
