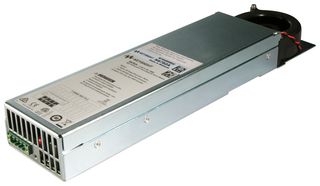

N6752A-MX

N6752A is a high-performance, autoranging DC power module that offers speed and accuracy for test optimization. This 100W high-performance, autoranging DC power module that provides low noise, high accuracy and programming speeds that are up to 10 to 50 times faster than other programmable power supplies. Optional high-speed test extension offers an oscilloscope-like digitizer that increases measurement accuracy when viewing high-speed transient or pulse events within the device-under-test (DUT). This module is used in both the small, multiple output 1U high N6700 low-profile modular power system (for ATE systems) and the multiple output N6705 DC power analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard.

• Output ratings are 50V voltage, 10A current, 100W power
• Programming accuracy (at 23°C ±5°C) is 0.06% + 19mV voltage, 0.1% + 20mA current
• 4.5mV/0.35mV ripple and noise (p-p/rms)
