59070-010

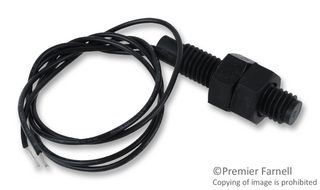

The 59070-010 is a small plastic Barrel Sensor with a M8 x 1.25 thread and 38.1mm long. This sensor features SPST standard normally open contacts. It is capable of switching up to 265VAC/300VDC at 10VA and operates through non-ferrous materials such as wood, plastic or aluminum. Simple installation and adjustment using supplied retaining nuts. Well suited for usage in high-moisture and contaminated environments. The non-contact solution, aesthetically more appealing than push-button or lever mechanical-type switches and ideal for battery-powered applications as the contacts do not draw power when in the non-activated state. The reed contacts of the sensor last for millions of operating cycles under micro-controller voltage and current logic-level loads.

• Magnetically-operated proximity sensor
• Threaded barrel with retaining nuts
• Excellent for switching microcontroller logic level loads
• Customer-defined sensitivity

Aplicaciones

Instrumentación y Medida, Seguridad, Industrial, Automatización y Control de Procesos, Administración de Potencia
