DM300024

The DM300024 is a dsPICDEM 1.1 Plus General Purpose development board provides the application designer with a low cost development tool to become familiar with the dsPIC30F/33F and PIC24H 16bit architecture, high performance peripherals and powerful instruction set. A dsPIC30F DSC device shipped with the dsPICDEM 1.1 Plus development board includes a pre-programmed demonstration program. This demonstration program exercises several of the dsPIC30F peripherals, such as the 12bit ADC and codec interface and several of the unique CPU features. Two RS232 serial communication channels are provided on the dsPICDEM 1.1 Plus Development Board.

• Serial communication channels interface (two UARTs, SPI, CAN, RS485)
• Si3000 voiceband codec with MIC In/Speaker Jacks
• General purpose prototyping area with expansion header
• 122 x 32 Dot addressable LCD
• MPLAB ICD 2 and MPLAB ICE 4000 emulator support
• Temperature sensor, LEDs, switches and potentiometers
• Digital potentiometer for DAC capability
• Full demonstration source code provided

Contenido

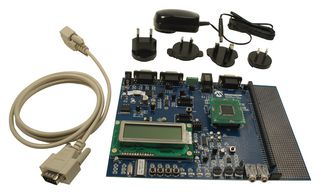

DsPICDEM 1.1 Plus Printed Circuit Board, Pre-programmed dsPIC30F6014A Plug-in Module, 9V DC Power Supply, RS232 Interface Cable, CD
