19002-0001

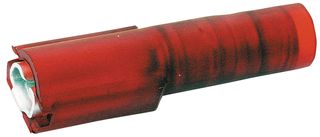

Terminal Tipo Faston, Serie Avikrimp 19001, Hembra de Desconexión Rápida, 6.35mm x 0.81mm
¿Necesita más?
| Cantidad | Precio en USD |
|---|---|
| 1+ | $0.384 |
| 10+ | $0.359 |
| 25+ | $0.359 |
| 50+ | $0.353 |
| 100+ | $0.343 |
Información del producto
Resumen del producto
The 19002-0001 is an Avikrimp™ female quick disconnect made of brass with tin plated finish for 22 to 18AWG wire. This 190002 series fully insulated quick disconnect comes with nylon (PA) insulation and closed barrel. Providing fast and reliable connection and disconnection of two wires, fully-insulated quick-disconnect terminals are available in a variety of options to meet industry requirements. Avikrimp™ fully insulated quick disconnects is the premium quick-disconnect terminal option. These QDs are made of a Krimptite™ terminal with a brass sleeve on the barrel and completely insulated with moulded nylon housing, providing all the benefits of an AviKrimp QD, with full insulation.
- Glow-wire compliant
- Accommodates multiple standard tab sizes
- Provides flexibility for a wide variety of applications
- Ensures optimum safety from electric shock
- UL94V-2 flammability rating
- Maximum voltage is 300V
- Operating temperature range from -65 to 105°C
Especificaciones técnicas
Serie Avikrimp 19001
6.35mm x 0.81mm
22AWG
Rojo
Nylon (Poliamida)
No SVHC (21-Jan-2025)
Hembra de Desconexión Rápida
0.25" x 0.032"
18AWG
-
Latón
Alternativas para el número de pieza 19002-0001
1 producto (s) encontrado (s)
Productos relacionados
3 productos encontrados
Legislación y medioambiente
RoHS
RoHS
Certificado de conformidad del producto
