70543-0009
Cabezal de Pin, Cable-a-Tarjeta, 2.54 mm, 1 Líneas, 10 Contactos, Recto Agujero Pasante
¿Necesita más?
| Cantidad | Precio en USD |
|---|---|
| 1+ | $2.450 |
| 10+ | $2.210 |
| 25+ | $1.670 |
| 50+ | $1.630 |
| 100+ | $1.600 |
| 250+ | $1.570 |
| 500+ | $1.470 |
| 1000+ | $1.350 |
Información del producto
Resumen del producto

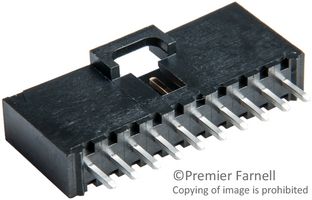

The 70543-0009 is a 10-circuit 1-row 2.54mm pitch SL™ Vertical Header, with 3.05mm pocket, gold-plated phosphor bronze contacts, tin-plated PC tail and through hole vertical termination. This 70543 series PCB header is made of high temperature thermoplastic, mates with SL™ crimp housing 70066 option N, 70066 option G, 70066 option A, 70430 option G, 70400 option G, suitable for signal and wire-to-board applications. SL™ (Stackable Linear) products are capable of mating with select C-Grid® and KK® products.
- Positive-lock mating interface - Secures retention with receptacles in high-vibration environments
- Low-profile, stackable housing, header - Provides design flexibility
- Black color
- UL94V-0 Flammability rating
- 3A Current rating per contact
- 250V Voltage rating
- -40 to 105°C Temperature range
Especificaciones técnicas
Cable-a-Tarjeta
1Líneas
Recto Agujero Pasante
Envuelto, sin Envolver
Contactos con Recubrimiento de Oro
Cuerpo de PET (Poliéster), Fibra de Vidrio
3
2.54
10Contactos
Serie SL 70543
Bronce Fosforado
PCB Header
Recto
No SVHC (04-Feb-2026)
