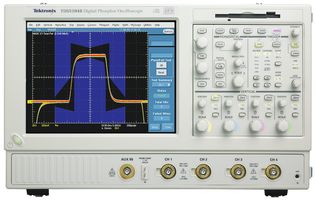

TDS5104B

TDS5104B portable digital phosphor oscilloscope offers Tektronix exclusive MyScope® customisable oscilloscope user interface that allows the user to build their own control windows with only the controls, features and capabilities that they need. The user can select just the functionality needed from all the various parts of the oscilloscope into one control window, effectively creating a personalised “toolbox” of oscilloscope features. All models include: one 500 MHz 10x passive probe per channel, accessory pouch, front cover, mouse, Quick Start user manual, TDS5000B series product software CD-ROM and operating system restoration CD-ROM, GPIB programmer’s reference, optional applications software CD-ROM, Getting Started with OpenChoice® guidebook, performance verification procedure PDF file, calibration certificate documenting NIST traceability, Z540-1 compliance and ISO9001 registration, and power cord.

• Up to 16M record length
• 100,000wfms/s Maximum waveform capture rate
• Suite of advanced triggers
• MyScope™ custom control windows enhance productivity
• Right-mouse-click menus for exceptional efficiency
• OpenChoice® platform with Windows® 2000 delivers built-in networking and analysis
• Small footprint/lightweight, 10.4" in. bright display
• Standard Touch-Screen as well as Remote viewing and control
• E-mail on event
• CD-RW drive, GPIB controller, Interoperability with Tektronix Logic analysers

Aplicaciones

Diseño Embebido y Desarrollo, Comunicaciones y Red, Monitorización de Sistemas, Administración de Potencia, Imagen, Vídeo y Visión, Procesado de Señal, Automoción, Industrial, Automatización y Control de Procesos, Hospitalario

Contenido

One 500 MHz 10x passive probe per channel, accessory pouch, front cover, mouse, Quick Start user manual, product software CD-ROM and operating system restoration CD-ROM, GPIB programmer’s reference, optional applications software CD-ROM, Getting Started with OpenChoice® guidebook, performance verification procedure PDF file, calibration certificate documenting NIST traceability, Z540-1 compliance and ISO9001 registration, and power cord.
