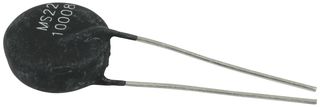

MS22 10008

The MS22 10008 is a radial leaded NTC (Negative Temperature Coefficient) Thermistor provides safe and cost effective way to reduce inrush current. Constructed with high temperature materials for long life and durability, an NTC thermistor's resistance drops logarithmically as its body temperature increases. Provides a simple one-component alternative to using wire-wound resistors with timers and relays, MegaSurge series inrush current limiting NTC thermistor greatly simplify designs. In addition, they increase safety by eliminating the fire hazard associated with failed relays. While traditional thermistors are only certified for input voltages from 85 to 265VAC, UL-recognized MegaSurge devices are certified for single- and three-phase input voltages up to 480VAC. These specifications are the highest of any single-solution inrush current limiting device on the market.

• 450J Actual energy failure
• 55mW/°C Dissipation constant
• G type material (for beta and curve)
• 112s Thermal time constant
• 0.09Ω Resistance (at 100% maximum current)
