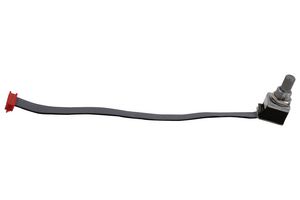

Rotary Encoder, 6" Cable, Optical, Incremental, 24 PPR, 24 Detents, Vertical, With Push Switch
Image is for illustrative purposes only. Please refer to product description.
ManufacturerGRAYHILL
Manufacturer Part No62A15-02-060C
Newark Part No.14M6805
Product Range62A Series
Technical Datasheet
10 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $69.070 |
| 5+ | $64.930 |
| 10+ | $63.200 |
| 25+ | $61.480 |
| 50+ | $59.750 |
| 100+ | $58.030 |
Price for:Each
Minimum: 1
Multiple: 1
$69.07
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerGRAYHILL
Manufacturer Part No62A15-02-060C
Newark Part No.14M6805
Product Range62A Series
Technical Datasheet
Encoder TechnologyOptical
Encoder TypeIncremental
Encoder Resolution24PPR
No. of Detents24 Detents
OrientationVertical
Push SwitchWith Push Switch
Encoder OutputQuadrature
Encoder MountingPanel Mount
Product Range62A Series
Rotational Speed Max100rpm
Rotational Life Cycles1000000
No. of Channels2Channels
Shaft TypeD Type Flatted End
Shaft Length9.52mm
Shaft Diameter6.35mm
Supply Voltage Min4.75V
Supply Voltage Max5.25V
Operating Temperature Min-40°C
Operating Temperature Max85°C
IP Rating-
TerminationWire Leaded
SVHCNo SVHC (17-Jan-2022)
Product Overview
The 62A15-02-060C is an Optical Encoder with pushbutton and 0.5-inch center tin-plated brass terminations. The optical encoder has zinc casting bushing, stainless steel shaft retaining ring, reinforced thermoplastic code housing and stainless steel detent spring.
- High torque version to emphasize rotational feel
- Optically coupled for more than a million cycles
- 15° or 24-position Angle of throw
- 2-bit Quadrature coded output coding
- 5VDC/10mA resistive Pushbutton rating
- 250VAC between mutually insulated parts Voltage breakdown
- 1000000 cycles Minimum rotational life
- -40 to 85°C Operating temperature range
Applications
Sensing & Instrumentation, Medical
Technical Specifications
Encoder Technology
Optical
Encoder Resolution
24PPR
Orientation
Vertical
Encoder Output
Quadrature
Product Range
62A Series
Rotational Life Cycles
1000000
Shaft Type
D Type Flatted End
Shaft Diameter
6.35mm
Supply Voltage Max
5.25V
Operating Temperature Max
85°C
Termination
Wire Leaded
Encoder Type
Incremental
No. of Detents
24 Detents
Push Switch
With Push Switch
Encoder Mounting
Panel Mount
Rotational Speed Max
100rpm
No. of Channels
2Channels
Shaft Length
9.52mm
Supply Voltage Min
4.75V
Operating Temperature Min
-40°C
IP Rating
-
SVHC
No SVHC (17-Jan-2022)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
