DB9-USB-M

Interfaz USB, Industrial, Home Projects, Factor de forma DB9, USB, 4.25 V, 5.25 V

Fecha y lote
FTDI DB9-USB-M
FTDI DB9-USB-M
FTDI DB9-USB-M
FTDI DB9-USB-M
×
×

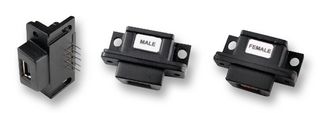

La imagen solo tiene fines ilustrativos. Consulte la descripción del producto.

Fabricante:
FTDI FTDI
No. Parte Fabricante:
DB9-USB-M
No. Parte Newark
76R7016
Hoja de datos técnicos:
DB9-USB-M   Datasheet
Ver todos los documentos técnicos

Resumen del producto

DB9-USB-M is a male connector version of the RS232 to USB2.0 interface. The DB9-USB-RS232 modules are designed to directly replace an existing DB9. The industry accepted name for a DE9 connector, (male or female) RS232 connection with a drop-in USB replacement connection. The modules will replace (pin-for-pin) a male or female DB9 RS232 connector with a USB mini-B connector. The application PCB containing the existing DB9 RS232 connector does not require any modification, only the replacement of the D-type connector with the appropriate DB9-USB-RS232 module. A male DB9 should be replaced by a male DB9-USB-RS232-M and a female DB9 should be replaced by a female DB9-USB-RS232-F. The modules contain all necessary electronics to convert between USB and RS232.
  • Adds one USB serial port by connecting to the RS232 DB9 footprint of a device
  • Easy placement for an standard Male and Female RS232 DB9 footprint of a device
  • Works with USB 1.1 & 2.0 Host and Hub ports
  • Industry Standard FTDI chip set & device drivers for maximum compatibility
  • Microsoft Windows WHQL-certified, Mac OS X, Linux and Windows CE device drivers
  • Installs as a standard Windows COM port
  • Supports Windows Server 2008, 2003, Vista, XP 2000, Linux, Mac OS X
  • Transmit buffer is 128 byte and Receive buffer is 256 byte
  • RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
  • Powered by USB port. No external power adapter required

Aplicaciones

Comunicaciones y Red, Industrial

Notas al pie

DB9 connectors are also known as DE9 connector since it consists of 9 pins in a size E shell. However DE9 connectors are more commonly referred to as DB9 connector.

Advertencias

In a domestic environment, radio interference may occur, in which case the user may need to take adequate measures. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Información del producto

¿Quieres ver productos similares? Selecciona tus atributos requeridos a continuación y haz clic en el botón ×


:
Industrial, Home Projects


:
Factor de forma DB9

:
USB

:
4.25V

:
5.25V


Encontrar productos similares Elija y modifique los atributos anteriores para encontrar productos similares.

Documentos técnicos (1)

Descarga de CAD

×

Términos y condiciones

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Aceptar Cancelar
Los más vendidos

161 En stock ¿Necesita más?

Entrega en 2-4 días hábiles para artículos en inventario (Stock en Reino Unido)

Debido a las condiciones del mercado, los tiempos de entrega son únicamente orientativos y pueden estar sujetos a cambios con poco tiempo de aviso.

$35.43

El precio no está disponible. Por favor Contáctese con Servicio al cliente.

Precio para:
Múltiple: 1 Mínimo: 1
Cantidad Precio en USD Su Precio en USD


1+ $35.43
Precio promocional
Precio de contrato
Precio exclusivo de la web
Precio de contrato exclusivo de la web

10+ $33.26
Precio promocional
Precio de contrato
Precio exclusivo de la web
Precio de contrato exclusivo de la web




El precio no está disponible. Por favor Contáctese con Servicio al cliente.

No longer stocked:: No Longer Manufactured::
Añadir a la cesta Añadir a la cesta Realizar Un Pedido Por Anticipado
Agregar
Producto restringido
Agregar número de pieza /nota de línea
Precio total:
Precio total: ( )
Precio total: --
