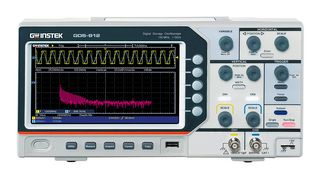

GDS-912

GDS-912 is a 100MHz, 2 channels, digital storage oscilloscope. It features a 7-inch widescreen with 15 horizontal divisions, offering 50% more display area. With a 1GSa/s max sampling rate and 20Mpts memory per channel, it captures long-duration transients while maintaining sampling at slower time bases. The oscilloscope offers 30 auto measurements, Area parameter for waveform integration, and +PulseCount for fast data acquisition in control or industrial applications. Other features include cursor RMS, FFT with six window types, time/frequency dual display, probe compensation test, auto signal detection, multilingual interface (10 languages), and lightweight 1.1 kg design. It balances pricing, portability, and advanced performance.

• 3.5ns (calculated) rise time
• 7" 800 x 480 TFT LCD display
• 6 digit high-precision frequency counter
• 2048pts FFT frequency domain signal display
• USB host/device interface
• Dimension is 301mm x 152mm x 70mm (11.85inch x 5.98inch x 2.75inch) (W x H x D)

Contenido

Digital storage oscilloscope, Power cord x 1, USB cable x 1, 100MHz(10:1/1:1) switchable passive probe for GDS-900 series x 2.
