PJ16148L

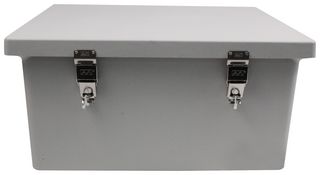

The PJ16148L is a type 4X non-metallic Junction Box with snap latch, made of polyester with gray finish. The PJ series junction box is designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides outstanding insulation and protection where equipment may be hosed down or be very wet. It is ideal in applications with high temperatures or highly corrosive environments. Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled. 10-32 threaded brass inserts are provided for optional inner panel or terminal kit mounting. Twist latch enclosures are available with bonded polycarbonate viewing windows. Threaded brass inserts are provided for mounting feet to the rear of the enclosure. Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.

• Enhanced UV inhibitors protect against outdoor weathering
• Stainless steel draw type "snap latch" door fasteners
• Door fasteners include a provision for padlocking
• Door is supported with a continuous stainless steel hinge
• Captive oil resistant gasket provides a positive seal
