PJ864H

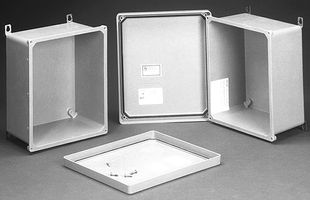

The PJ864H is a Junction Box made of moulded fibreglass polyester enclosure with clear cover is easily punched, cut or drilled. It is designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. It provides outstanding insulation and protection where equipment may be hosed down or be very wet. It is ideal in applications with high temperatures or highly corrosive environments. It has stainless steel mounting brackets and hardware is provided for mounting feet to the rear of the enclosure.

• IP66, NEMA-1, 2, 3, 4, 4X,12, 13 Protection rating
• Enhanced UV inhibitors protect against outdoor weathering
• Standard JIC sizes under 18" x 16"
• 10-32 Threaded brass inserts are provided for optional inner panel or terminal kit mounting
• Cover is fastened with captive stainless steel screws in threaded brass inserts
• Captive oil resistant gasket provides a positive seal
• Threaded brass inserts are provided for mounting feet to the rear of the enclosure
• Impact index of 6.78J (5ft/lb)
• -40 to 130°C Operating temperature range
