RMCV190713BK1

The RMCV190713BK1 is a 4U Vented Economy Rack Chassis that uses all machine screw and PEM nut construction, perfect for applications where repetitive assembly and disassembly are required. Strong design construction using 0.125-inch thick side panels and rack-mount brackets, 0.064-inch thick front and rear panels, 0.062-inch thick top and bottom panels. It can be used with or without rack-mounting "ears" or brackets. The RMC series enclosure is finished in rugged, satin texture, black powder paint. Easy access to inside, only 4 screws need to be removed from any of the 6 panels for internal access. Knockdown design ships unassembled for easy handling and shipping protection.

• Lightweight design - All aluminum, type 5050 H32 for easy modification

Contenido

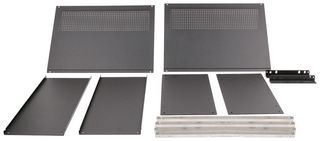

Top, bottom, side panels, front and rear panels, Rubber self adhesive feet, Rack-mount brackets and All hardware.

Notas

Grounding options available through our modification process. Panels are not grounded to frame due to powder coat finish.
