FH12-6S-1SH(55)

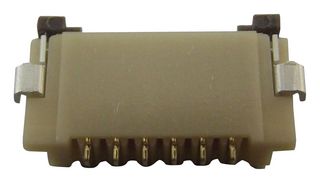

The FH12-6S-1SH(55) from Hirose(HRS) is a FH12 series standard contact type 1mm female FPC/FFC connector with 6 contacts. It features one-touch rotating ZIF mechanism which is easier to operate and works with a light force. A clear tactile click is delivered upon the successful completion of the mating process. The FH12 connector's one-touch ZIF system requires less space than a slide locking connector and can be mounted in the centre of the PCB. There are three connection types available including top contact, bottom contact and a vertical mount. It has beige polyamide and dark brown PPS insulator, gold plated phosphor bronze contacts and tin plated brass fitting.

• Supports high density mounting
• Current rating of 0.5A DC and voltage rating of 50VAC
• Operating temperature range from -40°C to 85°C
• Insulation resistance of 500Mohm minimum at 100VDC
• Contact resistance of 50mohm maximum at 1mA
• Flammability ratings meets UL94V-0
• SMT horizontal mounting contact type and single contact alignment
• 20 mating/unmating cycles
• 150VAC for one minute withstanding voltage
