ADB275

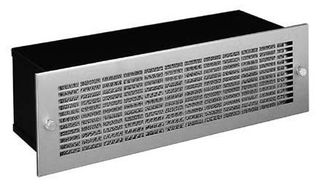

The A-DB275 is a 115VAC Blower Fan with a brushed stainless steel grille and black enamel housing. This AC blower features washable aluminum filter, single phase motor, the motor is thermally protected and cooled by incoming forced air. The direct drive induction motor contains permanently lubricated ball bearings. The unit is self-supporting with 16 gauge steel flanges notched as per EIA RS-310-D. This blower comes with three-conductor power cord (five feet long) and rotating components are suspended on neoprene shock-mounts. The blower fan provides the maximum amount of cooling air in the least amount of space by utilizing 115VAC, 60/50 hertz, single-phase input power.

• Intake grille is easily removed with two captive thumbnuts
