DT-2RV49-B6

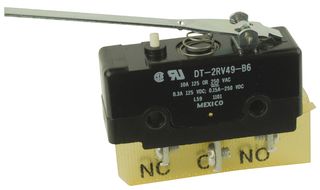

The DT-2RV49-B6 is a MICRO SWITCH™ Snap-action Switch with straight lever actuator, screw termination and two independent single-pole double-throw circuits in one housing actuated by one actuator. The DPDT contact configuration provides a contact for the control circuit and a different contact for the signal or auxiliary circuit. The terminals are separated by a non-conductive shield to reduce shorting. It is used for precision on/off applications, irrigation systems, semi-trailer trucks, timing devices, office equipment, manually operated devices and valves.

• Mounting interchangeability with type Z switches
• Temperature tolerance to 82°C
• Design permits several wiring combinations
• Power duty control

Aplicaciones

Comunicaciones y Red, Agriculture, Hospitalario, Test y Medida, HVAC
