MAX9928EVKIT+

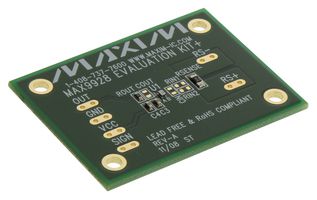

The MAX9928EVKIT+ from Maxim Integrated Products is an MAX9928 evaluation kit. It provides a design to evaluate the MAX9928 uni-/bidirectional, high-side, current-sense amplifier which offers precision accuracy specifications of VOS < 400µV and gain error < 1.0%. This EV kit demonstrates the MAX9928F in an ultra-small, 1mm x 1.5mm x 0.6mm, 6-bump UCSP™ package. The MAX9928 EV kit PCB comes with a MAX9928FABT+ installed which is the 5µA/mV gain version. It can also be used to evaluate the MAX9929F and MAX4372 IC with UCSP package. Typical application include general-system/board-level current monitoring, monitoring charge/discharge currents in portable/battery-powered systems, notebook computers, precision current sources, smart-battery packs/chargers, smart-cell phones and super capacitor charge/discharge.

• Precision real-time current monitoring
• Input common-mode range from -0.1V to +28V
• SIGN bit to show charge/discharge current flow
• Proven PCB layout
• Fully assembled and tested
• General-System/Board-Level Current Monitoring; Monitoring Charge/Discharge Currents in Portable/Battery-Powered Systems;
• Notebook Computers; Precision Current Sources; Smart-Battery Packs/Chargers; Smart-Cell Phones; Super Capacitor Charge/Discharge
