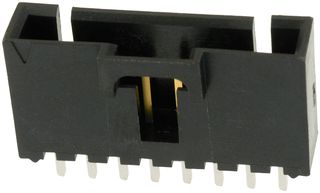

70543-0007
Cabezal de Pin, Cable-a-Tarjeta, 2.54 mm, 1 Líneas, 8 Contactos, Recto Agujero Pasante
¿Necesita más?
| Cantidad | Precio en USD |
|---|---|
| 1+ | $1.150 |
| 10+ | $0.986 |
| 25+ | $0.931 |
| 50+ | $0.928 |
| 100+ | $0.924 |
| 250+ | $0.921 |
| 500+ | $0.915 |
Información del producto
Resumen del producto
The 70543-0007 is a 8-way 1-row vertical SL™ Header with gold-plated contacts. This 70543 series PCB header comes with a high temperature thermoplastic resin housing and 3.05mm pocket. It mates with 70066 option N, 70430, 70400, 70066 option G, 70066 option A SL™ crimp housing. SL products are capable of mating with select C-Grid® and KK® products. This product family is suitable for low-power signal applications. Positive-lock mating interface ensures secure retention with receptacles in high-vibration environments. The header is suitable for signal and wire-to-board applications.
- Black colour
- UL94V-0 flammability rating
- Terminal features two independent points of contact
- Fully shrouded
- Lock to mating part
- Polarized to mating part
- Maximum durability of 50 mating cycles
- Maximum current per contact is 3A
- Maximum voltage rating is 250V
Especificaciones técnicas
Cable-a-Tarjeta
1Líneas
Recto Agujero Pasante
Envuelto, sin Envolver
Contactos con Recubrimiento de Oro
No SVHC (21-Jan-2025)
2.54mm
8Contactos
Serie SL 70543
Bronce Fosforado
PCB Header
Alternativas para el número de pieza 70543-0007
3 productos encontrados
Productos relacionados
7 productos encontrados
Legislación y medioambiente
RoHS
RoHS
Certificado de conformidad del producto
