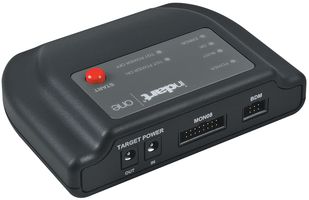

INDART-ONE

The INDART-ONE in circuit debugger/programmer is a powerful debugging and programming tool for all NXP HC08, S08, RS08, S12 and S12X family devices, current and future. INDART-ONE takes advantage of the CodeWarrior development studio special edition (which groups an editor, assembler, C compiler and debugger) and the NXP MON08 and BDM interfaces, which allow the download and debug of the user application into the target microcontrollers flash memory. Together with CodeWarrior, INDART-One provides you with everything you need to write, compile, download, in circuit emulate and debug user code. Full speed program execution allows you to perform hardware and software testing in real time. INDART-One is connected to the host PC through a USB port.

• In circuit debugging
• Real time code execution
• Built in flash programmer
• In circuit programming and debugging through standard BDM and MON08 compatible interfaces
• VDD in and VDD out connectors for target power supply handling (automatic or manual)
• Working frequency up to the target microcontrollers maximum
• All target microcontroller voltages supported
• Jumper less hardware mode setting
• Powered by the USB connector
• Reset, start, stop, single step, step over, step out debugging capabilities
