MH-2

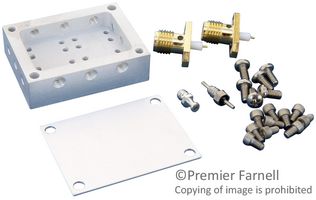

The MH-2 is a Housing for use with dual MB series circuit boards. It will accommodate two MB series circuit board to create completely shielded 2-port circuits. After assembling the desired MB circuit boards, simply drop them board into the housing cavity and screw the boards in place using #1-72 socket head cap screws with a 0.05-inch hex key. Join the two circuits together using a small bridge wire, foil ribbon, 0Ω resistor and capacitor. Then insert the SMA connector into the side walls and secure them with #2-56 mounting screws and solder the centre pins to the circuit board pads. The ground turret terminal and 1000pf bias feed-through are then installed into the housing side wall and the bias connection is soldered in place from the circuit boards to the feed-through pin using a small gauge wire. Install the feed-through carefully with just enough torque (2in-lbs max) to secure it in place.

• Rapid prototyping of 2-port microwave circuits
• Compatible with all MB series circuit boards
• Cascade two boards in to one housing
• SMA female connectors
• Ground terminal and bias feed-through
