HPT5K0TS048-L

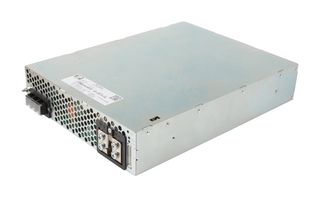

HPT5K0TS048-L is a HPT5K0-L series 5000W fan cooled AC/DC power supply. This offers ultimate flexibility with both output voltage and output current programming and user defined signals, warnings and alarms. Programming is via voltage, I2C PMBus, RS485 and CANopen in a very high efficiency, high power density 5kW chassis mount package. The HPT-L can be used in both constant voltage and constant current operation. It also features active current sharing, remote on/off, remote sense and a power OK signal. It includes overvoltage, overtemperature, overload protection. Approved by UL62368-1, CSA 22.2 No.62368-1, UL60950-1, ANSI/AAMI ES60601-1:2005 & CSA C22.2, No.60601-1:08 safety approvals. Application includes healthcare, industrial electronics, semiconductor manufacturing, technology.

• Programmable output voltage (0-105%), programmable output current (0-110%)
• Parallel operation, analog and digital interfaces
• Multiple digital protocols - PMBus, CANopen, MODBUS and SCPI
• Fully featured signals and controls, graphical user interface (GUI)
• 5V/2A standby output, 55 to 65KHz switching frequency range
• 180 to 264VAC input voltage (3kW output power max, 3 wire & earth), 48VDC typical output voltage
• 0.0A to 104.0A output current range, 93% efficiency, 6000VDC isolation (input to output)
• 3 year warranty
• Operating temperature range from -20 to 70°C
• Dimension is 13.25 x 10.00 x 2.50inch
