2306

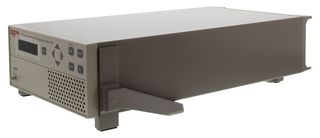

The dual channel Battery/Charger Simulator was designed specifically for development and test applications of portable, battery-operated products, such as cellular and cordless telephones, mobile radios, and pagers. This precision DC power supply product has ultrafast transient response so it can have output characteristics identical to actual batteries. This supply employs a unique variable output resistance so the voltage output can emulate a battery's response. It provides stable voltage outputs, even when a device-under-test (DUT) makes the rapid transition from the standby (low current) state to the RF transmission (high current) state. In addition, they can monitor DUT power consumption by measuring both DC currents and pulse load currents. The battery-simulator channel can be programmed to operate like a discharged rechargeable battery, sinking current from a separate charger.

• Ultrafast response to transient load currents
• Dual channel
• Optimized for development and testing of battery-powered devices
• Pulse peak, average, and baseline current measurements
• 100nA DC current sensitivity
• Current step measure function
• Sink up to 3A
• Open sense lead detection
• Built-in digital voltmeter

Aplicaciones

Test y Medida, Reparación y Mantenimiento

Contenido

CS-846 output connectors mating terminal, User and service manual

Notas

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
