E2613B

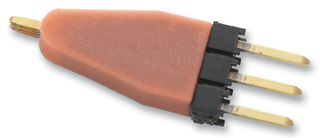

The Keysight E2613B is a wedge probe adapter for thin quad flat pack (TQFP) or plastic quad flat pack (PQFP) surface mounted ICs. If you've ever tried to probe a surface mount component, you've probably experienced one or more of the following frustrating situations: accidentally shorting IC pins together; electrical and/or mechanical problems with soldering small wires onto leads; and/or holding multiple probes and trying to use your scope at the same time. The Keysight Wedge Probe Adapter provides a solution to these frustrations. It is easy to insert and stays put - no need to solder small wires onto leads. The Wedge is mechanically non-invasive, so you won't damage the legs of the IC. It makes two contact points with each leg of the IC. This redundant physical connection increases the electrical reliability of the connection.

• Easy connection to surface mount ICs
• Safe, with no chance of shorting
• Mechanically non-invasive contact
• Operating voltage: less than 40 V (dc + peak ac)
• Operating current: 0.5 A maximum
• Capacitance between contacts: 2 pF (typical)
• Self-inductance: 15 nH (typical)
• Contact resistance: less than 0.1 Ohm
